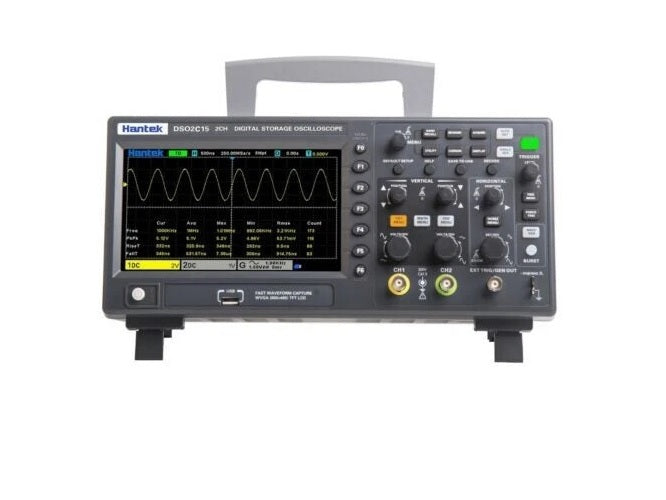

Model |
KG-DSO2D15 |
KG-DSO2D10 |
KG-DSO2C15 |
KG-DSO2C10 |
|
|
Bandwidth |
150MHz |
100MHz |
150MHz |
100MHz |
|
|
Oscilloscope channels |
2CH |
2CH |
2CH |
2CH |
|
|
Waveform generator |
1CH |
1CH |
- |
- |
|
|
Oscilloscope |
|||||
|
Sample rate |
1GSa/s (single channel) 500MSa/s (two channels) |
||||
|
Acquisition |
|||||
|
Normal |
Sample data |
||||
|
Peak-to-peak value |
Display high frequency and random burr |
||||
|
Average |
Average waveform, times: 4, 8, 16, 32, 64, 128 |
||||
|
High resolution |
Up to 12bit |
||||
|
Input |
|||||
|
Input coupling |
DC, AC, GND |
||||
|
Input impedance |
1MΩ±2% ‖13pF±3pF |
||||
|
Probe attenuation factor |
1X, 10X, 100X, 1000X |
||||
|
Voltage rating |
300V CAT II |
||||
|
Maximum input voltage |
300VRMS (10X) |
||||
|
Horizontal |
|||||
|
Waveform interpolation |
(without x)/x |
||||
|
Maximum record length |
Single channel maximum 8M |
|
|||
|
Two channels maximum 4M |
|||||
|
Horizontal scale range |
2ns/div~100s/div 1, 2, 5 step by step |
||||
|
Time base mode |
YT, XY, Roll |
||||
|
Zero offset |
±0.5 div×minimum time base gear |
||||
|
Sample Rate and Delay Time Accuracy |
±25ppm |
||||
|
Delta Time Measurement Accuracy (Full Bandwidth)Sample Rate and Delay Time Accuracy |
single-shot, Normal mode ±（1 sample interval+100ppm×reading+0.6ns） |
||||
|
＞16 times averages ±（1 sample interval+100ppm×reading+0.4ns） |
|||||
|
Sample interval=sec/div÷200 |
|||||
